Likely Top BDT Core Skills Questions for 2023 BECE Candidates

Test your readiness for the BECE by attempting the following Likely Top BDT Core Skills Questions for 2022 BECE Candidates. These questions will test your foundation skills as they are all core skills topics. The second section contained four questions and WAEC has never asked a question like the last two questions. Do your best to attempt all of them. Share with your teachers and students and know how to deal with such questions if you are a Pre Technical Student. Note also that it has been a while since WAEC tested candidates on Design Brief-related questions. We have one such question here to help you test your skills on reasoning and problem-solving skills.

Likely Top BDT Core Skills Questions for 2023 BECE Candidates

Core Questions for BDT: Home Economics, Visual Arts and Pre-Technical Skills.

a. What is an exhibition?

b. Describe any two types of exhibition

c. Explain three factors to consider when planning an exhibition

d. What is packaging?

e. Give three importance of packaging

f. Name any four materials used in packaging.

g. What is an apprenticeship?

h. Describe formal apprenticeship.

i. What is a business direct risk?

j. List four steps for detecting faults in electrical appliances.

k. Study the situation below and answer the questions that follow.

READ 2022 BECE Revision Questions and Answers: Get Them Now!

Incoming letters to the headmaster of WE-GO-PASS JHS are kept on top of her writing desk.

This makes it difficult for her to write as the desk becomes congested.

i. Write a design brief.

ii. State two analysis questions on materials

iii. List two [2] methods that can be used to record data for solving the problem.

iv. State two [2] specifications on construction.

v. Sketch Two [2] possible solutions with notes and select one.

vi. Name any three materials that are needed to make the solution you selected from question v above.

READ: BECE 2022: Solve These Questions First In Core Maths To Secure An ‘A’

Graphic Design and Communication Questions – Practical

Question 1: Draw to full size in 3rd angle projection

a. The Front Elevation

b. Plan

c. Left end elevation

Note dimensions are in Millimetres

READ: 2023 BECE BDT Core Skills Questions: Pass Easily

Question 1: Draw to full size in 3rd angle projection

a. The Front Elevation

b. Plan

c. Left end elevation

Note dimensions are in Millimetres

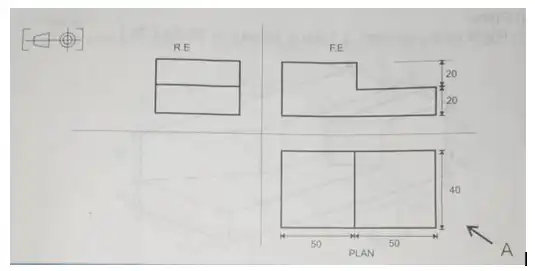

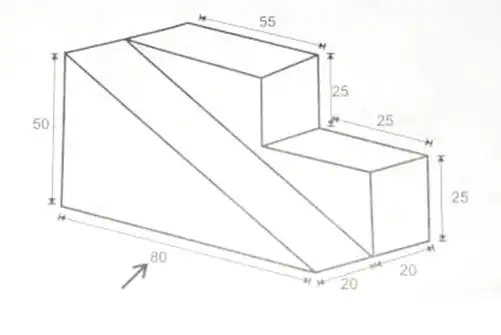

Question 3: Draw full-size, the isometric block from the orthographic details given in the direction of the arrow E. Note that dimensions are in Millimetres.

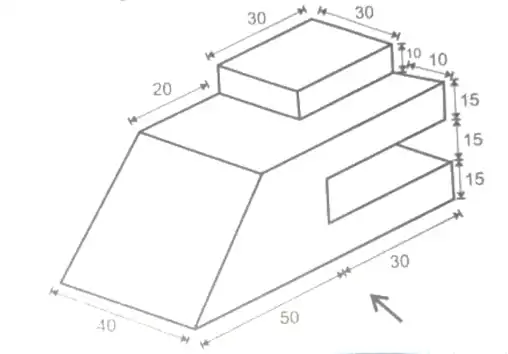

Question 4: Draw full-size, the isometric block from the orthographic details given in the direction of the arrow A. Note that dimensions are in Millimetres.

We hope these Likely Top BDT Core Skills Questions for 2022 BECE Candidates have put you on your toes.
